Bringing Heavy Duty to the Next Level
The all new BioSpreader brings heavy-duty to the next level. While other manufacturers use mild steel flighting, the PTX is built with hardened steel to prevent sagging and deformity over extended use. Our live floor has a 3/4" grade 80 logging chain with a higher breaking strength.
HEAVY DUTY EVERYTHING
The BioSpreader 14 and 20 models bring heavy duty to the next level. Built with hardened steel to prevent sagging and deformation over extended use. The live floor has a 3/4” grade 80 chain with a higher breaking strength, and the innovative vertical beater system delivers rock-steady performance, and uniform spread.
After producers explained their challenges handling manure under a variety of extreme weather and field conditions, the Bio Spreader addresses their biggest concerns: affordability, load capacity, ease of use, maintenance, maneuverability, spread consistency and uniformity. Unlike other pull-behind compost spreaders, BioSpreader offers the most versatility in the market. Many operations can afford to purchase two!

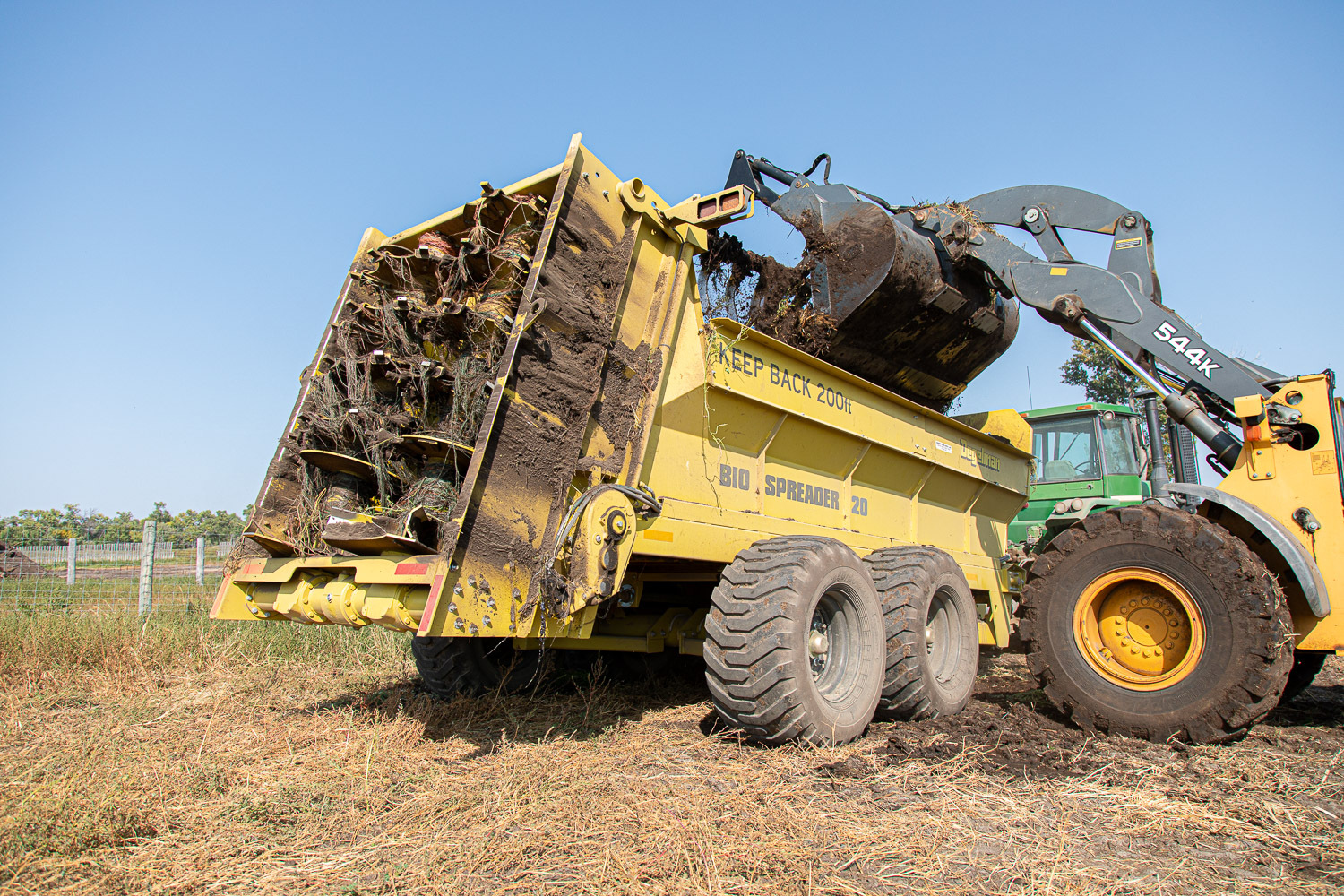

The BioSpreader has an all heavy-duty design, can be simultaneously loaded by a Track Hoe and Skid Steer, and has patented reversable/replaceable teeth, a tighter turning radius for best maneuverability, and a uniform and consistent spreading pattern.
Degelman Industries promises to stand by all previously purchased Bio Spreaders, regardless of color. Furthermore, we'll continue to provide after-sales support and parts sales, as customer service remains our paramount priority.
For questions about Bio Spreaders, please reach out to Degelman directly at 1-800-667-3545.
If your Dutch Bio Spreader is within its warranty period, kindly contact Dutch Industries directly at 1-800-663-8824.
| Bio Spreader 14 | Bio Spreader 20 | |
| Overall Length | 325 in. | 355 in. |
| Overall Height | 119 in. | 122 in. |
| Overall Width | 127 in. | 128 in. |
| Overall Inside Width | 72.5 in. | 72.5 in. |
| Hitch Height | 19 in. | 19 in. |
| Tire Capacity | 550/45/22.5 (9,350 lbs each) | 550/60/22.5 (13,200 lbs each) |
| Loading Height (w/o extension) | 76 in. | 79 in. |
| Loading Height (w/ extension) | 86 in. | 93 in. |
| Box Inside Length | 197 in. | 227 in. |
| Box Inside Height (w/o extension) | 31 in. | 31 in. |
| Box Inside Height (w/ extension) | 41 in. | 45 in. |
| Unit Weight | 14,500 lbs. | 15,500 lbs. |
| Maximum Net Load | 28,000 lbs. | 41,600 lbs. |
| Capacity Extensions | ||
| Struck Level | 320 cu ft. | 415 cu ft. |
| Heaped | 440 cu ft. | 555 cu ft. |
| Maximum | 540 cu ft. | 672 cu ft. |
| Construction | ||
| Floor and Sides | Steel 3/16 in. | Steel 3/16 in. |
| Each Axle Spindle Capacity | 20,000 lbs.* | 20,000 lbs.* |
| Hydraulic Lift End Gate | Standard | Standard |
| Tongue Weight -% of Gross Weight | 12% | 12% |
Beaters |
||
| Replaceable Paddles or Teeth | 32 | 32 |
| Diameter (lower paddle) | 35 | 35 |
| Diameter Paddle Flighting 3/8” Hardened Steel | 26.5 | 26.5 |
| Diameter (Spike Teeth) 3/4” Hardened Steel | 32.6 | 32.6 |
| Overload Protection Horizontal Beaters | PTO Shear Bold - Beater Urethane Coupler | PTO Shear Bold - Beater Urethane Coupler |
| Easily Removable Beater Assembly | Yes | Yes |
Beater PTO Drive |
||
| RPM | 1000 | 1000 |
| Gearbox Ratio | 43.6:1 | 43.6:1 |
| No. of Gearboxes | 2 | 3 |
| Chain Size | 3/4 in. Grade 80 | 3/4 in. Grade 80 |
| Chain Speed (Maximum RPM) 20 GPM | 10 | 10 |
| Gearbox Drive | Single Hydraulic Motor 200 cc with Pressure Relief Forward & Reverse | Dual Hydraulic Motors 80 cc with Pressure Relief Forward & Reverse |
| Standard Spreader Hitch | CAT 4 2” Articulating Insert with Reducer to Accommodate 1.5” Pin | CAT 4 2” Articulating Insert with Reducer to Accommodate 1.5” Pin |
| Horsepower Requirement | 150 HP Minimum | 200 HP Minimum |
