THE NEXT GENERATION OF PERFORMANCE
Introducing the all new Pro-Till by Degelman. Available in 4 new sizes, we’ve raised the bar on what you should expect out of your tillage equipment. Built heavy with a “drop the pin and go” mentality, this is next generation tillage as only Degelman can do.
Featuring a narrower transport size, true greaseless technology throughout the entire machine, and versatility that includes the optional Scorpion Hitch and upcoming Pro-Cast Granular applicators.

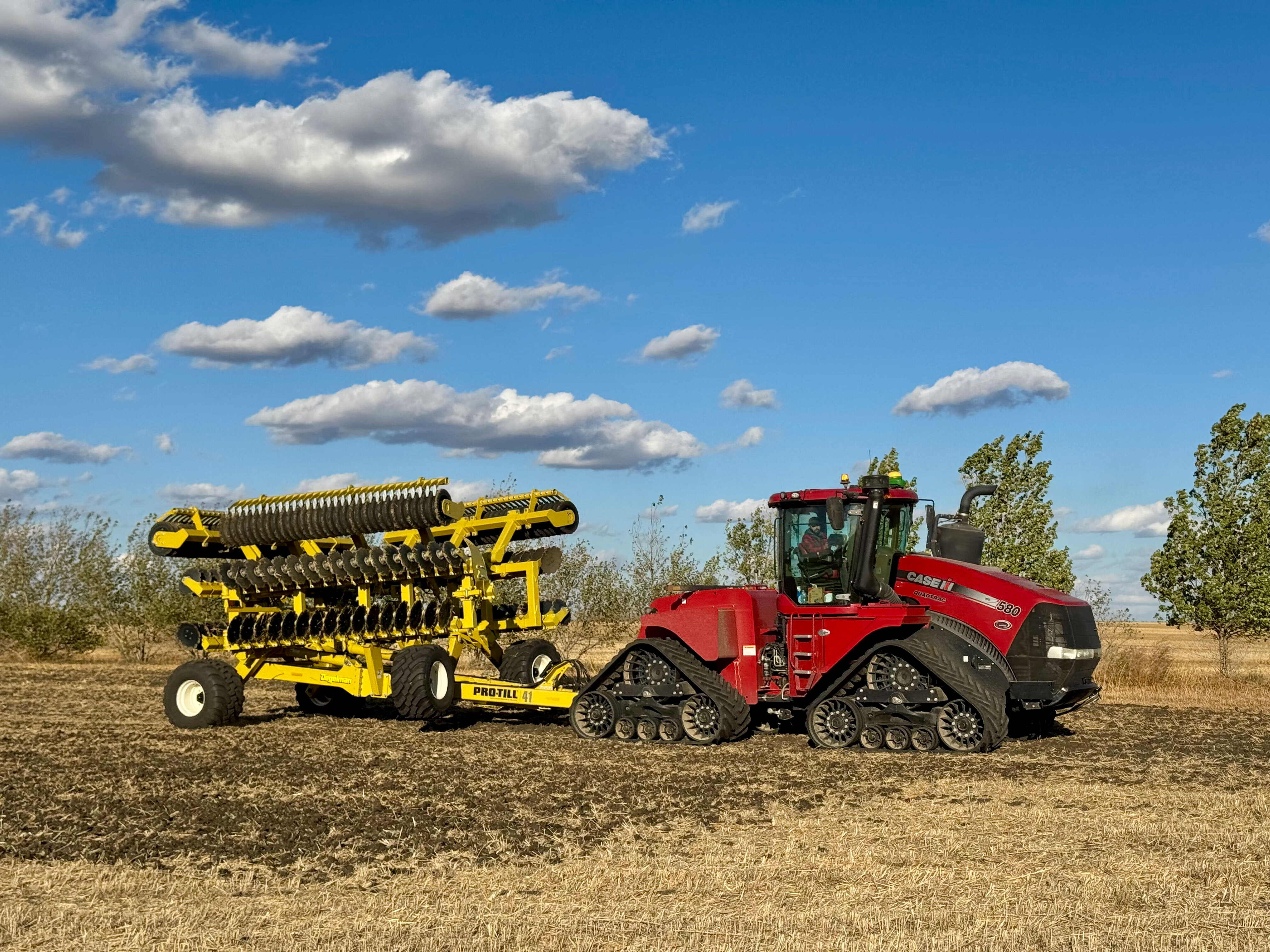

NARROWER TRANSPORT SIZES
We know that spring and fall work is quick and unforgiving, and that you need to get from field to field safely and efficiently. The all new Pro-Till's fold up almost 7 feet narrower (in high position) than our previous 33 & 40 foot models. The Pro-Till 30 and 36 fold up to 13' 2" and The Pro-Till 41 & 45 fold up to 16' in transport position.
TRUE GREASELESS TECHNOLOGY
Degelman Industries is the only company to offer true greaseless technology. Other companies use pins that don't take grease and call it a day. The all-new Degelman Pro-till offers an exclusive self-lubricated, zero maintenance bushing which is manufactured from a friction liner applied on a glass fiber structure. Combined with our over-sized electroless plated nickel pin, which at 2.5" in diameter, make them the largest on the market by over 60%.
Put away the grease gun. We know the window for spring and fall work is quick and unforgiving. Give yourself the upper hand with Degelman’s game changing True Greaseless Technology.
Farming operations are becoming bigger and more complicated every day. We know time is money, and that today’s growers have more to worry about then greasing their equipment. We have invested time and money, and are committed to bringing True Greaseless technology to all products we develop. Any product name with the TGT marking on it, features our industry leading True Greaseless Technology.
Oversized Electroless
|
At 2” in diameter, these high-tensile steel |
|
Model |
PTL30 |
PTL36 |
PTL41 |
PTL45 |
|
Transport Height (Low c/w Rubber Roller) |
13'-0" |
13'-5" |
13'-6" |
13'-8" |
|
Transport Height (High c/w Rubber Roller) |
13'-4" |
13'-8" |
14'-0" |
14'-3" |
|
Transport Height (Low c/w Cage Roller) |
12'-4" |
12'-8" |
12'-10" |
13'-0" |
|
Transport Height (High c/w Cage Roller) |
12'-10" |
13'-5" |
13'-8" |
13'-11" |
|
Transport Length |
23'-4" |
26'-4" |
27'-6" |
27'-6" |
|
Field Length |
28'-8" |
31'-8" |
33'-0" |
33'-0" |
|
Wheel Base |
11'-4" |
11'-2" |
13'-6" |
13'-6" |
|
Transport Width (High Position) |
13'-2" |
13'-2" |
16'-0" |
16'-0" |
|
Transport Width (Low Position) |
14'-8" |
14'-8" |
17'-8" |
17'-8" |
|
Weight (c/w rubber roller, scraper & 20" discs) |
27,500 lbs |
31,500 lbs |
37,800lbs |
39,500lbs |
|
Hitch Weight |
7,000 lbs |
9,000 lbs |
10,500 lbs |
11,400 lbs |
|
Number of Discs (center) |
24 |
24 |
32 |
32 |
|
Number of Discs (per wing) |
23 |
31 |
33 |
37 |
|
Roller Size (center) |
9’-10” |
9’-10” |
14’-6” |
14’-6” |
|
Roller Size (wing) |
9’-10” |
13’-2” |
13’-2” |
14’-6” |
|
Model |
PTL30/36 |
PTL41/45 |
|
Disc Arm Mounting |
Rubber Torsion - 4 Elements per Arm |
Rubber Torsion - 4 Elements per Arm |
|
Disc Spacing |
5” Overall Spacing (10” Spacing per Row) |
5” Overall Spacing (10” Spacing per Row) |
|
Tire Size Center |
600/50R22.5 |
750/45R22.5 |
|
Tire Size Wing |
500/60 R22.5 VF |
600/50R22.5 |
|
Transport Cylinder |
6 x 40 x 2in - Pin Eye c/w composite bushings & seals |
6.5 x 42 x 2.5in - Pin Eye c/w composite bushings & seals |
|
Wing Cylinder |
4 x 28 x 2in - Pin Eye c/w composite bushings & seals |
4 x 28 x 2in - Pin Eye c/w composite bushings & seals |
|
Wheel Depth Master Cylinder |
4.25 x 8 x 2in - Pin Eye c/w composite bushings & seals |
4.25 x 8 x 2in - Pin Eye c/w composite bushings & seals |
|
Wheel Depth Slave Cylinder |
3.75 x 8 x 2in - Pin Eye c/w composite bushings & seals |
3.75 x 8 x 2in - Pin Eye c/w composite bushings & seals |
|
Roller Depth Master Cylinder |
4.25 x 8 x 2in - Pin Eye c/w composite bushings & seals |
4.25 x 8 x 2in - Pin Eye c/w composite bushings & seals |
|
Roller Depth Slave Cylinder |
3.75 x 8 x 2in - Pin Eye c/w composite bushings & seals |
3.75 x 8 x 2in - Pin Eye c/w composite bushings & seals |
|
Hydraulic Jack Cylinder |
4 x 12 x 2in - Pin Eye c/w composite bushings & seals |
5.5 x 8 x 2in - Pin Eye c/w composite bushings & seals |
|
Working Depth |
8” c/w 20” discs or 9” c/w 22” discs |
7” c/w 20” discs or 8” c/w 22” discs |
|
Hydraulic Jack |
Standard |
Standard |
|
Safety Lights |
Standard |
Standard |
|
Soil Deflector |
Standard |
Standard |
|
|
12hp |
15hp |
20hp |
|
PRO-TILL 30’ |
360 |
450 |
600 |
|
PRO-TILL 36’ |
450 |
550 |
600 |
|
PRO-TILL 41’ |
500 |
600 |
600+ |
|
PRO-TILL 45’ |
550 |
600+ |
600+ |
