With the Pro-Till 33 and 40 foot machines, Degelman Industries pioneered the trend of a “North American High Performance Disc”. We took European technology and added weight where it was needed, simplicity where it made sense, and performance where it mattered, so it could withstand the acres and punishment that farmers across North America demand. There is still nothing heavier or better built on the market. The Pro-Till 33/40 is undeniably Degelman.

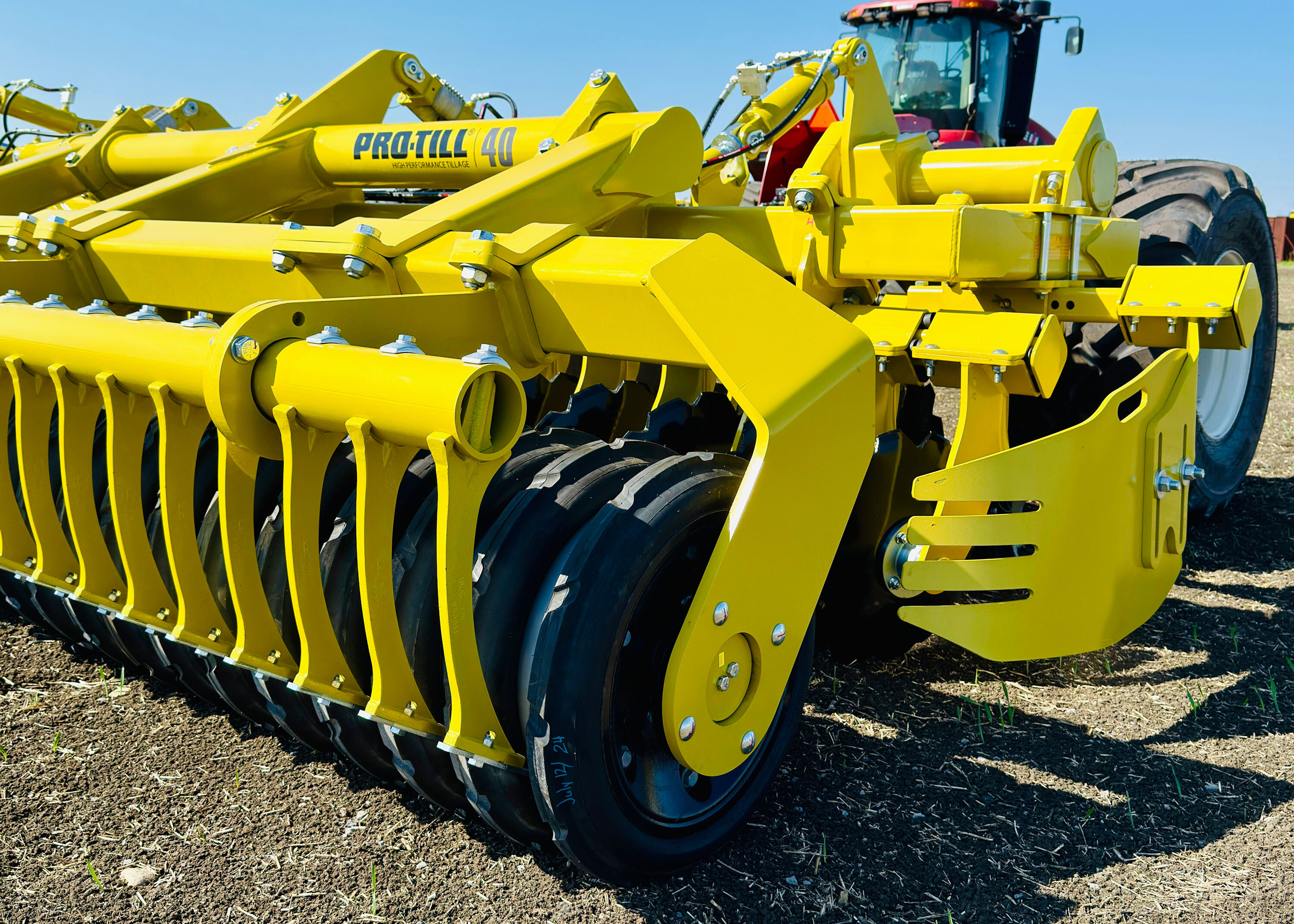

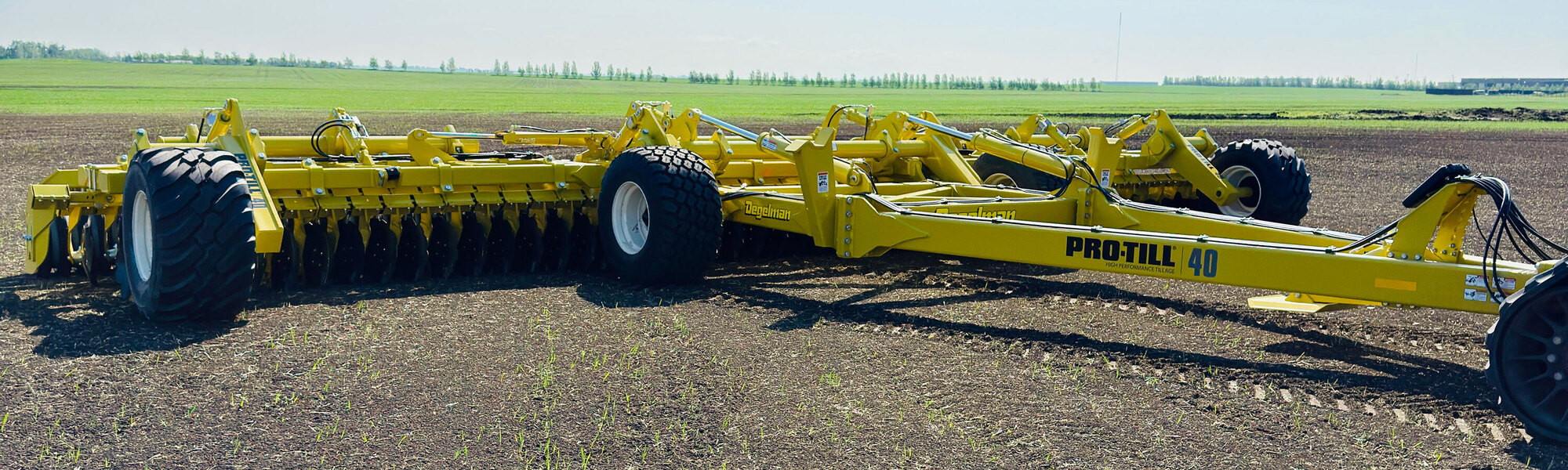

PRO-TILL 40
THE ORIGINAL MONSTER
UNSURPASSED
FLOTATION
100% Wider
Degelman Pro-Till uses BKT FL-630 Ultra-High Flotation radial tires, offering an extremely wide footprint area for maximum performance in wet soil conditions.
Lugged Tread Pattern
Pro-Till’s BKT FL 630 tires use a non-directional, lugged tread designed to shed mud; ideal for wet conditions. These tires wear longer and save you fuel and time in the field when compared to traditional ribbed tires.
30% Taller
With a 30% taller tire, Degelman Pro-Till minimizes rolling resistance while reducing the impact on soil structure.
Safe and Sound
The Alliance high-volume radial flotation tire series was designed to optimize the efficiency of agriculture transportation. The 382 series includes all-steel construction and a deep, non-directional block pattern which enables high mobility in the field, as well as comfortable, high-speed transportation.
700% More Flotation -
Nearly 7000 square inches
Degelman Pro-Till uses BKT FL-630 Ultra High Flotation radial tires, offering an extremely wide footprint area for maximum performance in wet soil conditions. The shape of the contact area is specially designed to minimize the impact on soil structure.
| Section Width: 24” | Rolling Circumference: 141” |
| Overall Diameter: 46.1” | Load Capacity @25mph: 13,230 lbs |
| Static Loaded Radius: 21” |

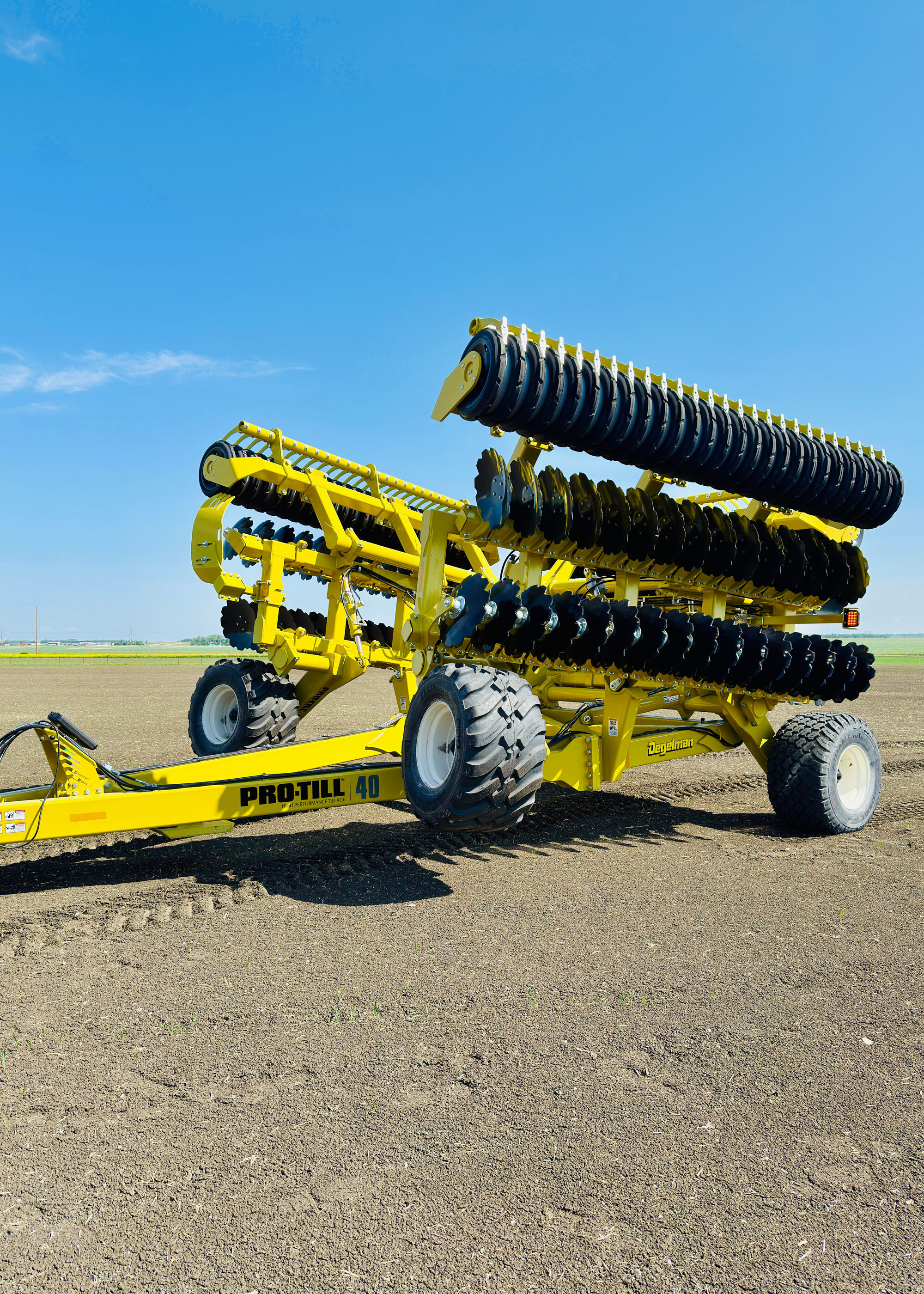

Safely Transport To
& From The Field
Pro-Till is user-friendly, allowing the operator to engage the transport position from the safety of the tractor seat. The wing-forward design is incredibly compact and stable for road transport. It incorporates an ultra-low profile-under 13’ (3.9m) - which is ideal for clearing bridges and power lines. The hitch weight is positive, creating a safe and highly maneuverable machine.
SPECIFICATIONS
|
Model |
PT33 |
PT40 |
|
Width Available |
33’ (10 m) |
40’ (12 m) |
|
Transport Height (rubber roller) |
12’-9” (3.9 m) |
13’-2” (4 m) |
|
Transport Height (cage roller) |
12’-2” (3.7 m) |
12’-7” (3.8 m) |
|
Transport Width |
20’ (6 m) |
20’ (6 m) |
|
Weight |
31,140 lbs (14,130 kg) |
34,560 lbs (15,680 kg) |
|
Hitch Weight |
6,310 lbs (2,862 kg) |
8,500 lbs (3,855 kg) |
|
Number of Discs (center) |
32 |
32 |
|
Number of Discs (per-wing) |
23 |
31 |
|

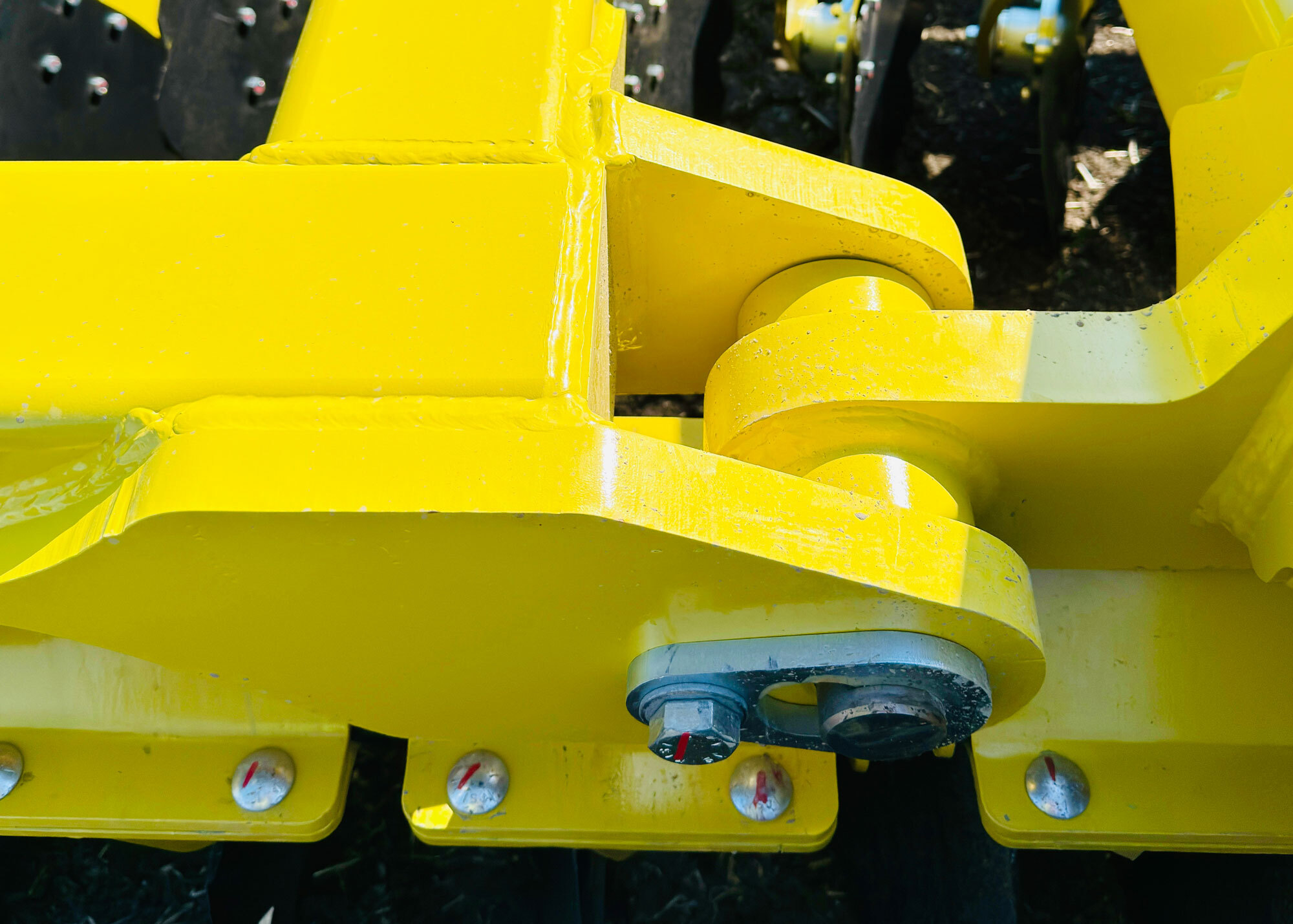

Disc Arm Mounting |
Rubber Torsion - 4 Elements per Arm |
Rubber Torsion - 4 Elements per Arm |
|
Disc Spacing |
5” Overall Spacing (10” Spacing per Row) |
5” Overall Spacing (10” Spacing per Row) |
|
Hitch Frame |
6” x 10” x 3/8” |
6” x 10” x 3/8” |
|
Center Frame |
6” x 10” x 3/8” |
6” x 10” x 3/8” |
|
Wing Frame |
6” x 6” x 3/8” |
6” x 6” x 3/8” |
|
Tires (center) |
Alliance 600/50R22.5 FLOTRUCK |
Alliance 600/50R22.5 FLOTRUCK |
|
Tires (wing) |
BKT 600/50R22.5 FL630 Ultra |
BKT 600/50R22.5 FL630 Ultra |
|
Hubs |
H1010-9 (10 Bolt) |
H1010-9 (10 Bolt) |
|
Roller Bearings |
2-7/16” Ball Bearing 6 - Lip Seal |
2-7/16” Ball Bearing 6 - Lip Seal |
|
Hydraulics - Wheel/Roller |
Rephasing Circuit Masters 4-1/4” x 8” x 2” Rod & Slaves 3-3/4” x 8” x 2” Rod |
Rephasing Circuit Masters 4-1/4” x 8” x 2” Rod & Slaves 3-3/4” x 8” x 2” Rod |
|
Hydraulics - Transport Lift |
5-1/2” x 42” x 2-1/2” Rod |
5-1/2” x 42” x 2-1/2” Rod |
|
Hydraulics - Wing Forward |
4” x 28” x 2” Rod |
4” x 28” x 2” Rod |
|
Roller Size (center) |
13’-2” (4 m) |
13’-2” (4 m) |
|
Roller Size (wings) |
9’-10” (3 m) |
13’-2” (4 m) |
|
Hydraulic Jack |
Standard |
Standard |
|
Safety Lights |
Standard |
Standard |
|
Soil Deflector |
Standard |
Standard |
HORSEPOWER REQUIREMENTS
- 12 to 15 hp per foot at 2” or less working depth to achieve 8-12 mph with 20” blades (will vary by soil type)
- 15 to 20 hp per foot at 2” or more working depth to achieve 8-12 mph with 20” blades (will vary by soil type)
Horsepower Per Foot
| Model | 12hp | 15hp | 20hp |
| 33’ | 400 | 500 | 600 |
| 40’ | 500 | 600 | 600+ |
