Degelman now offers two sizes designed to mount to your 3 point hitch tractor. The Pro-Till 3 point series offers the same engineered tough, rugged build that you have come accustomed to, but now available in 10 and 13 feet. This is true high speed, high performance residue management, with horsepower requirements starting at 200hp.

Product Image
Product Image
Product Image

SPECIFICATIONS

Model

PT10

PT13

Working Width

10' (3m)

14' (4M)

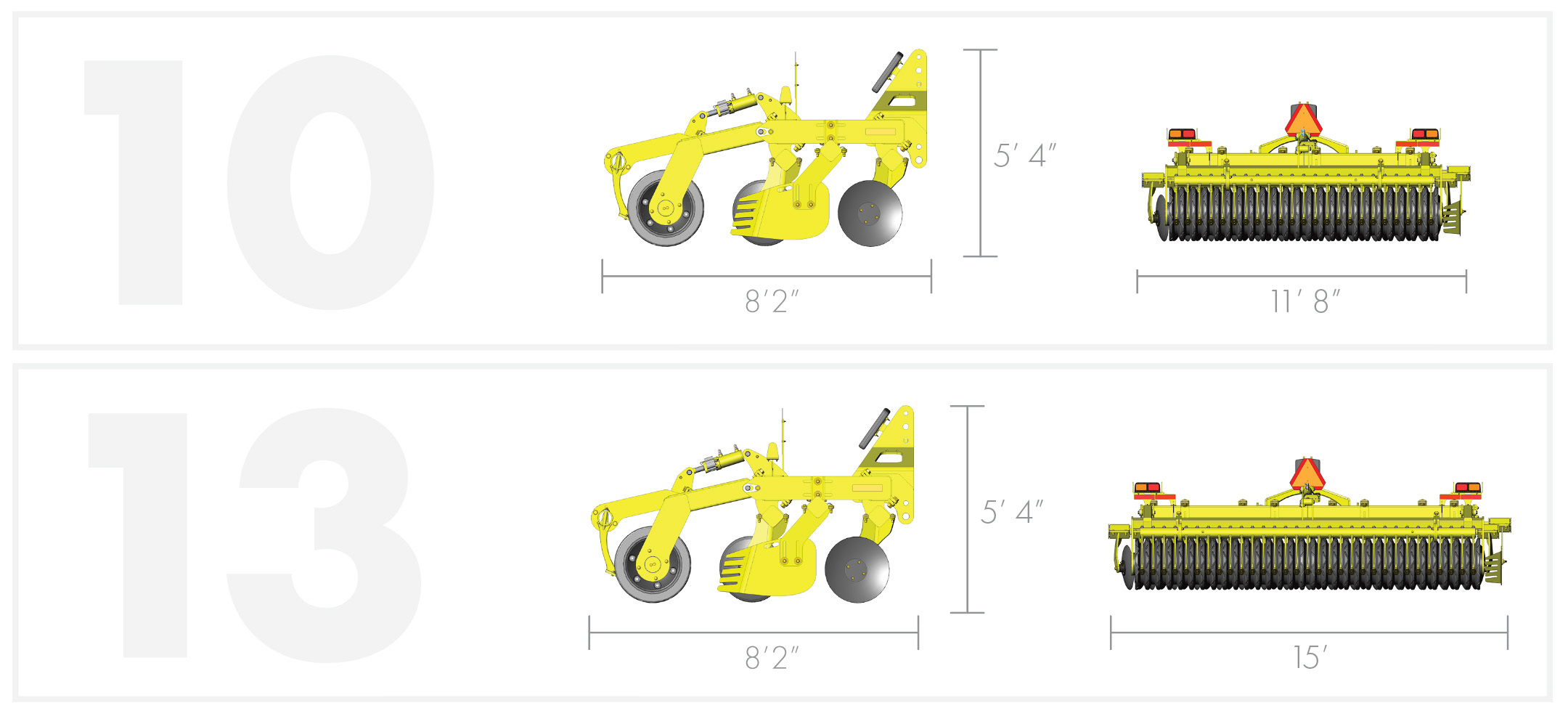

Transport Width

11'-8"

15'-0"

Overall Height

5'-4"

5'-4"

Overall Length

8'-2"

8'-2"

Weight

See Weight Chart

SEE WEIGHT CHART

Lift Weight***

See Weight Chart

SEE WEIGHT CHART

Number Of Discs

24

32

Safety Lights

Standard

STANDARD

Soil Deflector

Standard

STANDARD

Roller Size

9'-10" (3m)

13'-2" (4M)

horsepower requirements

  • 20 to 25 hp per foot at 2” or less working depth to achieve 8-12 mph with 20” blades (will vary by soil type)

  • 25 to 30 hp per foot at  2” or more working depth to achieve 8-12 mph with 20” blades (will vary by soil type)

Horsepower Per Foot



20hp

25hp

30hp

10’

200

250

300

13’

260

325

390

WEIGHTS

Model

ROLLER TYPE

ACTUAL WEIGHT (LBS)

LIFT WEIGHT (LBS)

Pro-Till 10

Rubber + scrapers

5350

9310

Cage roller (9-bar)

5060

8200

Cage roller (12-bar)

5250

8820

Pro-Till 13

Rubber + scrapers

7050

12,870

Cage roller (9-bar)

6340

10,290

Cage roller (12-bar)

6580

11,100
