Upgrade your tillage to the next level

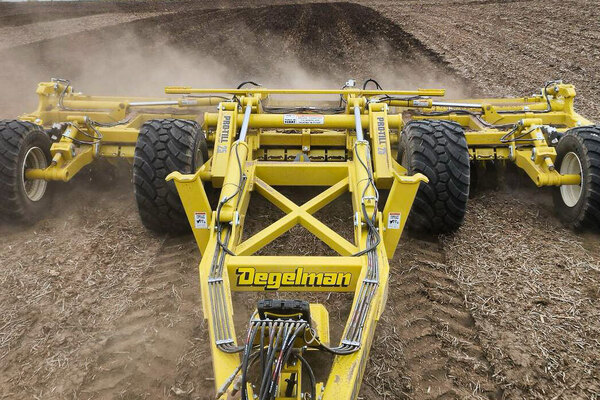

Introducing the Pro-Till 25 — an engineered tough evolution of the legendary Pro-Till high-speed tillage platform. After a decade of relentless refinement, real-world feedback, and agronomic innovation, we’ve reimagined the Pro-Till 26 into something far more advanced: a powerful tri-fold machine designed to deliver superior performance, precision, and productivity.

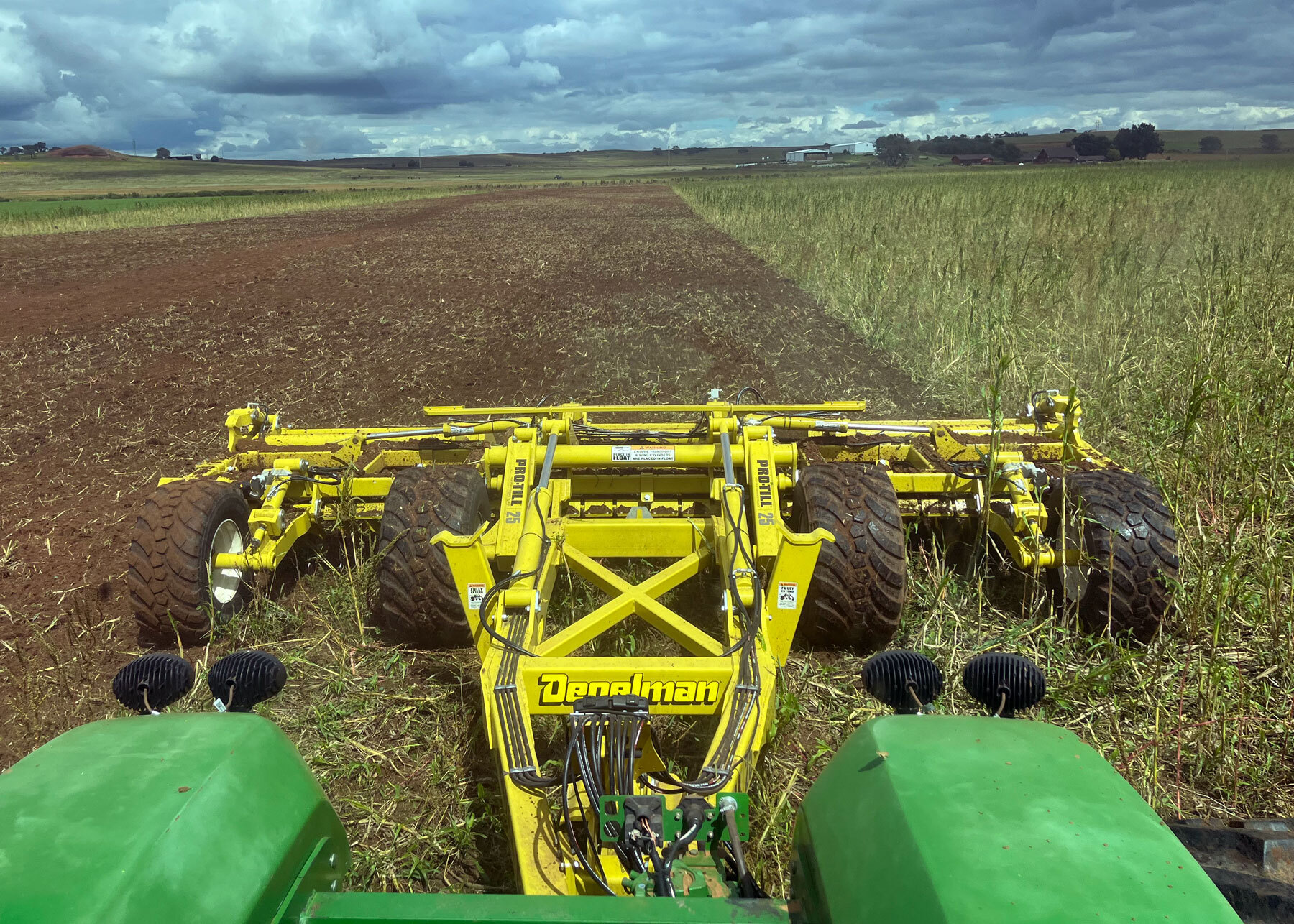

Engineered for smoother operation thanks to refined hinge placement, smart weight distribution, and wing wheels that stay grounded — even during lifts and headland turns. More flotation. More stability. Less stress.

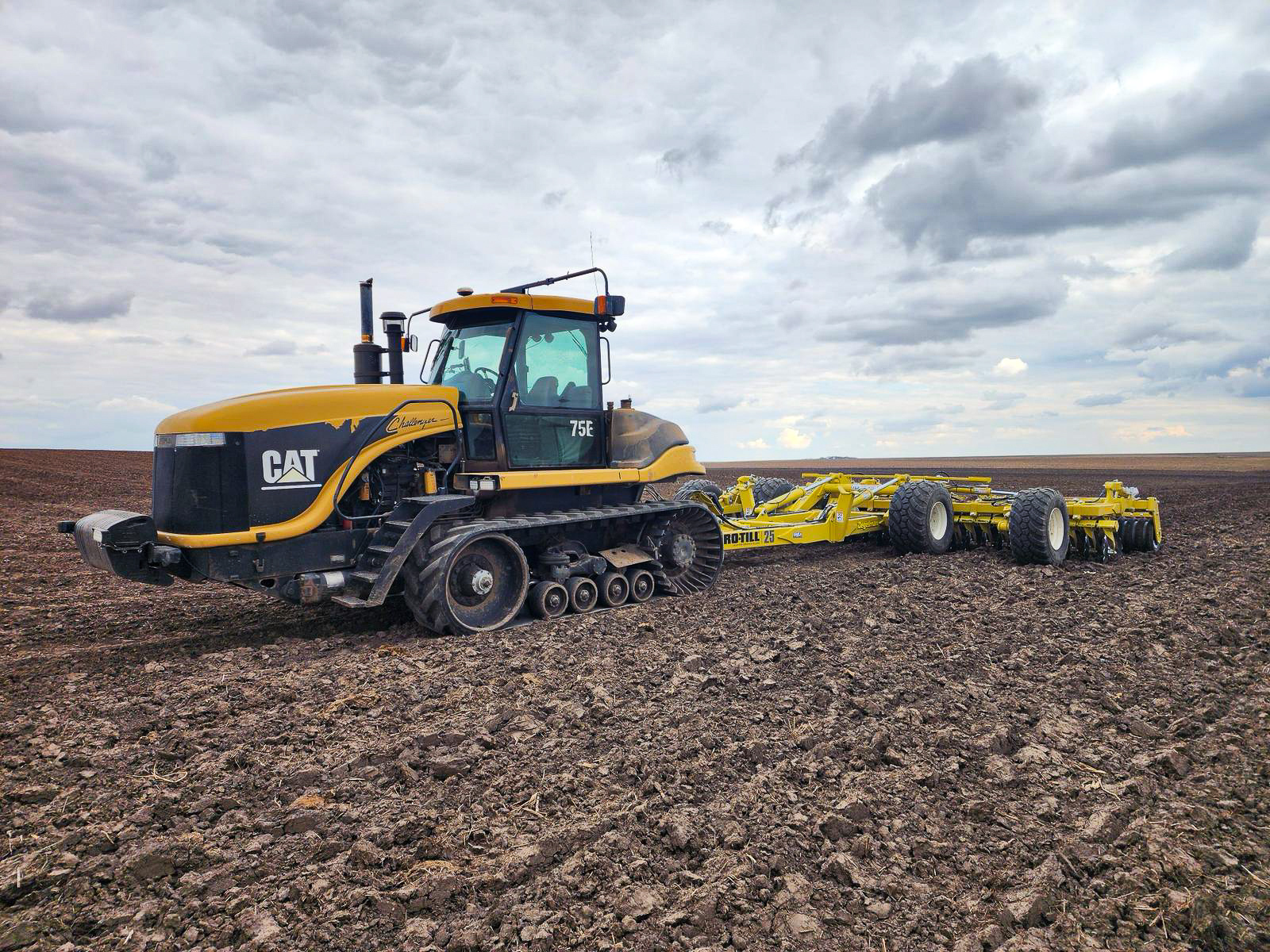

Bridging the gap between our PT20 and PT30, the Pro-Till 25 is perfectly matched for mid-size horsepower — pulling lighter and smarter than a PT26 without sacrificing performance.

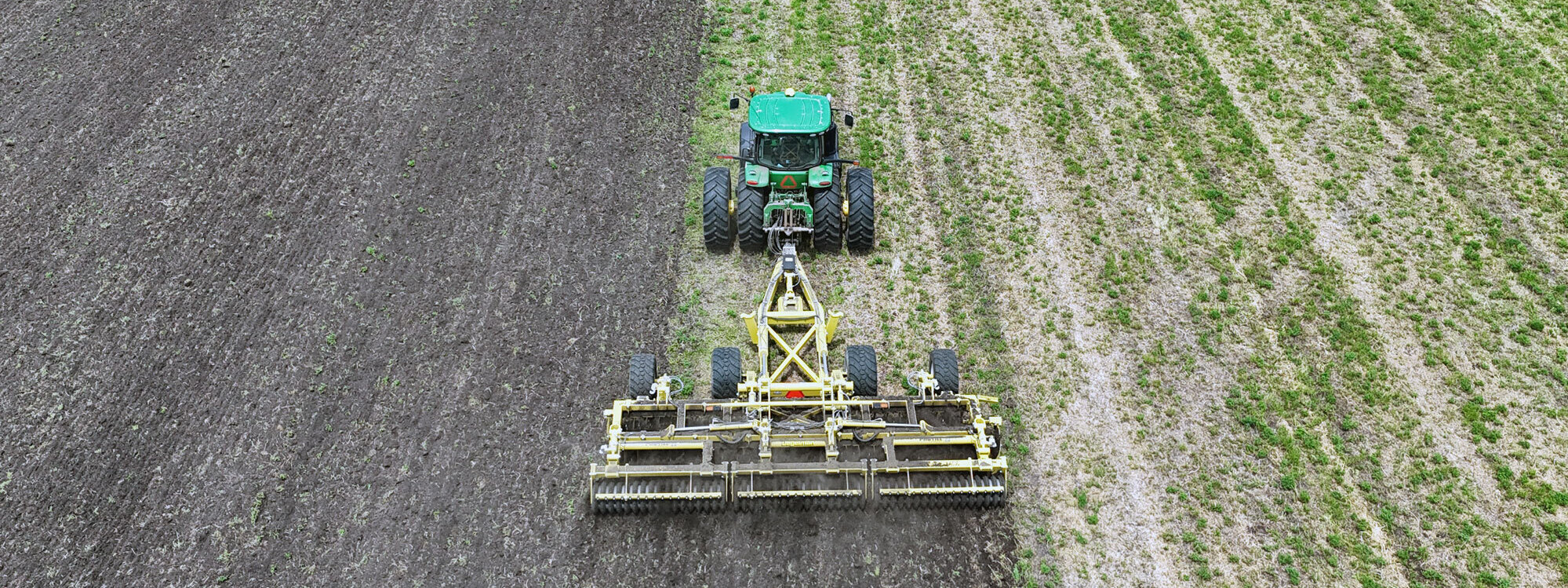

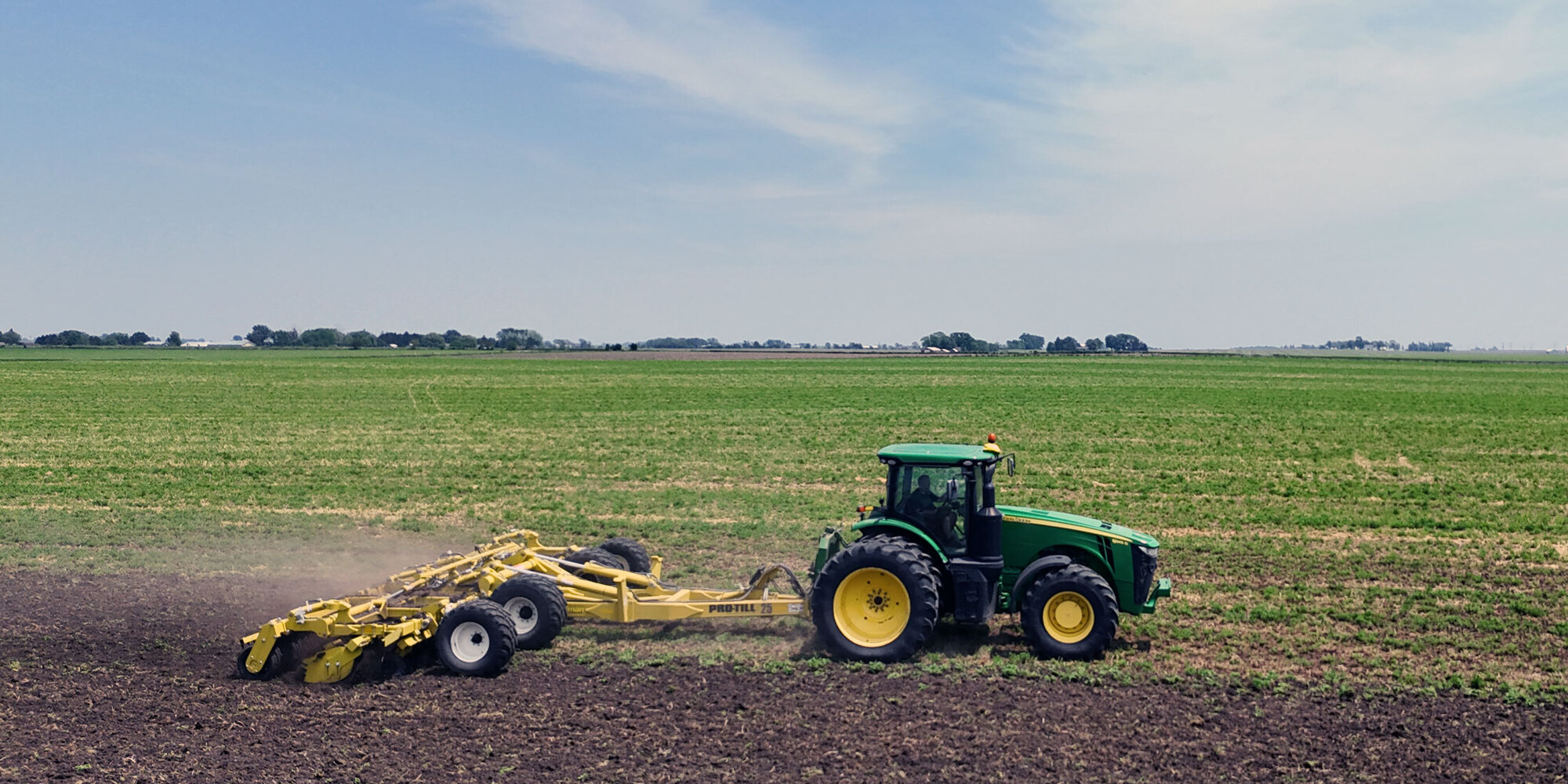

With three evenly sized sections, the Pro-Till 25 contours the ground like never before and matches the working depth of the larger Pro-Till 30/36.

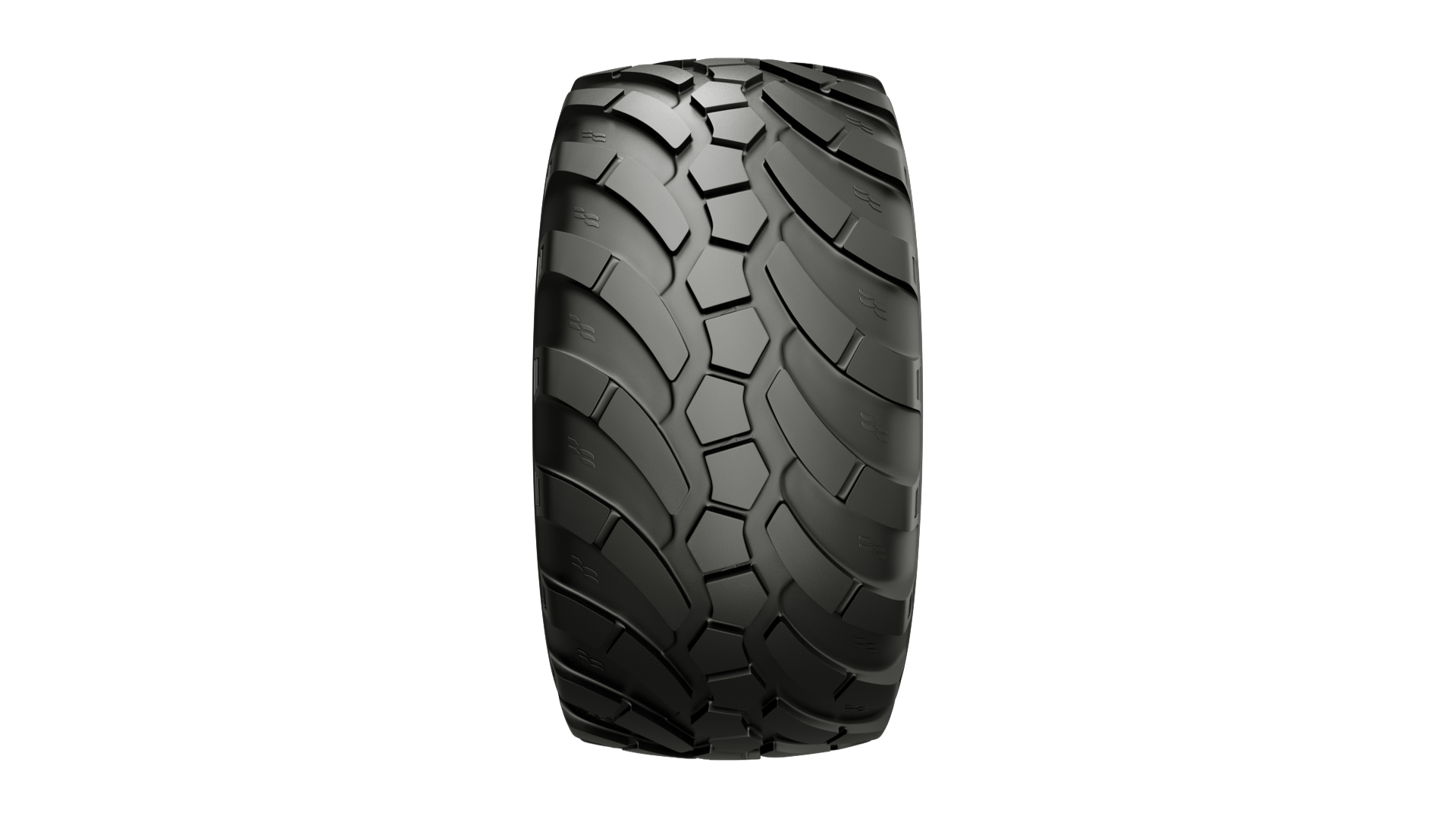

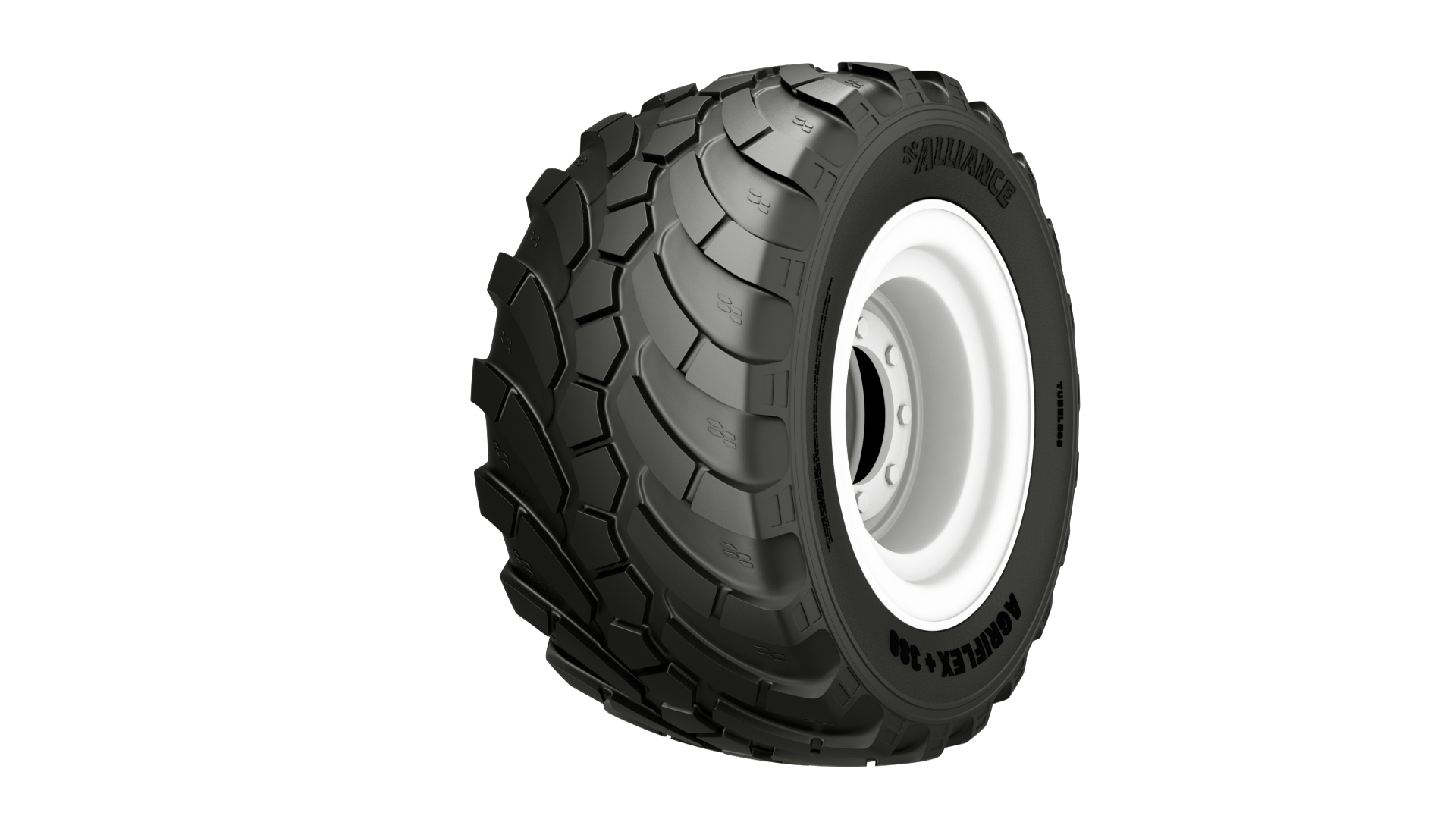

Equipped with VF 389 tires, which can be operated at 30% lower inflation than a traditional flotation tire, the Pro-Till 25 allows for reduced soil compaction and better field integrity — because agronomics matter.
Degelman Industries is the only company to offer true greaseless technology. Other companies use pins that don't take grease and call it a day. The all-new Degelman Pro-till 25 offers an exclusive self-lubricated, zero maintenance bushing which is manufactured from a friction liner applied on a glass fiber structure. Combined with our over-sized electroless plated nickel pin, which at 2.5" in diameter, make them the largest on the market by over 60%.
Optional HD arms for 24” discs make the Pro-Till 25 ready for aggressive ground engagement and deeper penetration.

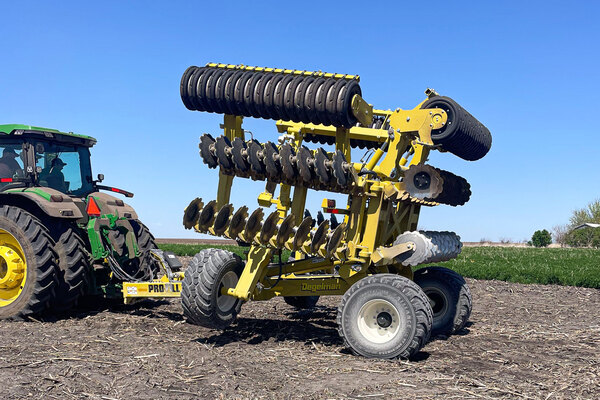

Folds up to a narrow 14' 11" wide and 12' tall in transport mode.
12 to 15 hp per foot at 2” or less working depth to achieve 8-12 mph with 20” blades (will vary by soil type)
15 to 20 hp per foot at 2” or more working depth to achieve 8-12 mph with 20” blades (will vary by soil type)
|
|
12hp |
15hp |
20hp |
|
PRO-TILL 25’ |
300 |
375 |
500 |
|
Model |
PTL25 |
|
Transport Height (Low c/w Rubber Roller) |
12'8" |
|
Transport Height (High c/w Rubber Roller) |
13' |
|
Transport Height (Low c/w Cage Roller) |
12' |
|
Transport Height (High c/w Cage Roller) |
12'-6" |
|
Transport Length |
20'-11" |
|
Field Length |
26'-4" |
|
Wheel Base |
11'-4" |
|
Transport Width (High Position) |
13'-9" |
|
Transport Width (Low Position) |
14'-11" |
|
Weight (c/w rubber roller, scraper & 20" discs) |
25,500 lbs |
|
Hitch Weight |
6,000 lbs |
|
Number of Discs (center) |
20 |
|
Number of Discs (per wing) |
19 |
|
Roller Size (center) |
8’-2” |
|
Roller Size (wing) |
8’-2” |
|
Model |
PTL25 |
|
Disc Arm Mounting |
Rubber Torsion - 4 Elements per Arm |
|
Disc Spacing |
5” Overall Spacing (10” Spacing per Row) |
|
Tire Size Center |
560/50R22.5 VF |
|
Tire Size Wing |
500/45R22.5 VF |
|
Transport Cylinder |
5x 40 x 2in - Pin Eye c/w composite bushings & seals |
|
Wing Cylinder |
4 x 28 x 2in - Pin Eye c/w composite bushings & seals |
|
Wheel Depth Master Cylinder |
4.25 x 8 x 2in - Pin Eye c/w composite bushings & seals |
|
Wheel Depth Slave Cylinder |
3.75 x 8 x 2in - Pin Eye c/w composite bushings & seals |
|
Roller Depth Master Cylinder |
4.25 x 8 x 2in - Pin Eye c/w composite bushings & seals |
|
Roller Depth Slave Cylinder |
3.75 x 8 x 2in - Pin Eye c/w composite bushings & seals |
|
Hydraulic Jack Cylinder |
4 x 12 x 2in - Pin Eye c/w composite bushings & seals |
|
Working Depth |
8” c/w 20” discs or 9” c/w 22” discs |
|
Hydraulic Jack |
Standard |
|
Safety Lights |
Standard |
|
Soil Deflector |
Standard |
