PERFECT BALANCE OF ENGINEERED TOUGHNESS
AND INTELLIGENT DESIGN

Degelman Industries has been engineering tough, high performance equipment for over 60 years. The result is outstanding equipment that exceeds expectations and outperforms. We achieve this through meticulous design and vigilant customer service.

No two tractor manufacturers are alike, so we don’t develop a blade that is “one size fits all. Degelman engineers, designs and individually builds all Bulldozer Tractor fit-ups to ensure proper mounting locations are the best spot to push from - protecting your tractor investment. Featuring a Precision Machined Tubing Finish, Superior Seals and High Grade Wear Bands the Degelman series of Bulldozer Blades adds value and versatility to your tractor.

Product Image

FIND THE BLADE SERIES THAT'S RIGHT FOR YOU

40-150 HP 3500 Series

Designed to mount on popular utility tractors, this blade is a smaller version of the 4600 and 5700 Series.

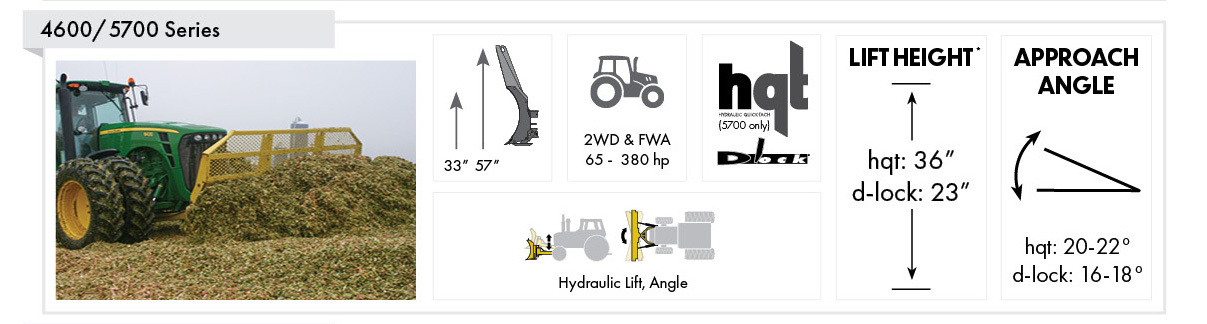

65-380 HP 4600/5700 Series

The 4600 and 5700 Series hydraulic angle blade attaches to both front-wheel assist and two-wheel drive tractors.

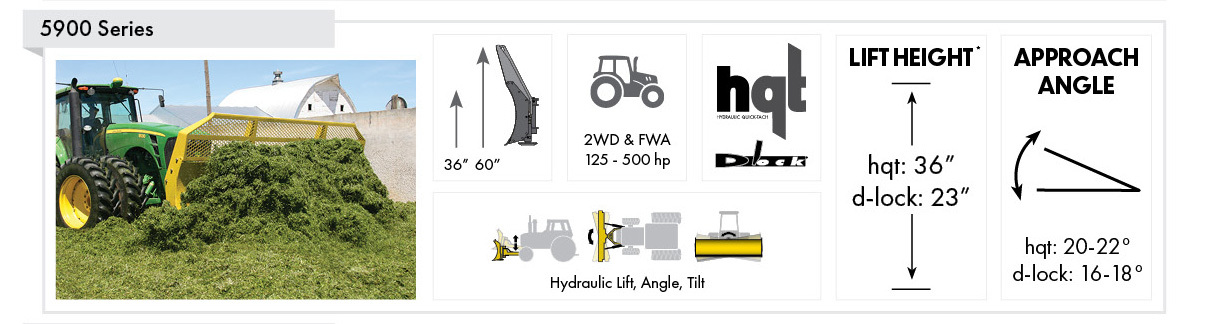

125-500 HP 5900 Series

The 5900 Series has all the features such as tilt, higher profile, D-lock® mid-mounting, and industrial skid shoes.

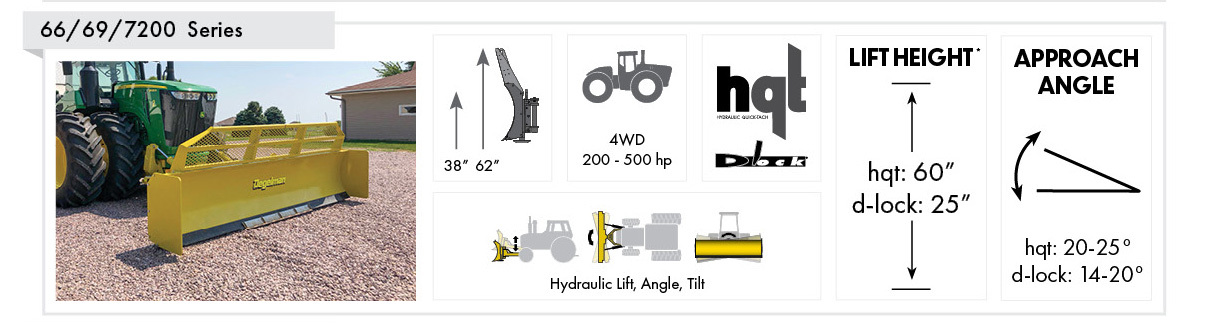

200-500 HP 66/69/7200 Series

Compatible with today’s high horse-power 4-wheel drive tractors, this series handles the most challenging jobs on your farm.

6600-Manual Angle
6900-Hydraulic Angle
7200-Hydraulic Angle & Hydraulic Tilt

300-700 HP 7900 Hi-Lift Series

Developed specifically for producers moving silage and haylage, the 7900 can also take on the toughest snow removal jobs. With a lifting capacity of 40", a blade height of 47" tall, and an increased angle of 30° to eliminate spillover, the 7900 is backed with over 40 years of blade experience.

All Series Specifications

Dozer Series 3500 4600/5700 5900 66/69/7200 7900
Tractor Horsepower Range 40 - 150 hp 65 - 380 hp 125 - 500 hp 200 - 500 hp 300 - 700 hp
Tractor Type 2WD & FWA 2WD & FWA 2WD & FWA 4WD 4WD
Blade Widths Avail. 8', 9', 10', 12' 9', 10', 12', 14' 10', 12', 14' 12', 14', 16' 12', 14', 16', 18', 20'
Blade Weight 1,350 - 1,450 lbs 2,050 - 2,950 lbs 3,390 - 3,660 lbs 3,365 - 5,055 lbs 5,165 - 7,650 lbs
Blade Height (standard) 27" 33" 36" 38" 49"
Blade Height (with top extension) 32" 40" 43" 45" 54"
Blade Height (with silage extension) 46" 57" 60" 62" 73"
Lifting Height (approx) 20" 23" 23" 25" 40" - 60"
Lift Cylinders 3" x 8" 3-1/2" x 8" 3-1/2" dia 3" - 4-1/2" dia 3-1/2" - 4-1/2" dia
Hydraulic Angle 18° 18° / 28° 24° 18° (6600 - manual angle) 22° - 25°
Hydraulics - Angle 2-1/2" x 16" 3" - 3-1/2" x 16" dia 3" x 20" 4" - 4-1/2" dia 4" - 4-1/2" dia
Hydraulics - Vertical Tilt n/a n/a 15° 13° (7200 model only) 10°
Tilt Cylinders n/a n/a 3 x 8" 4 x 8" (7200) 4" dia
Cutting Edge (MaxTemp® Steel) 5/8" x 6" 5/8" x 6" 5/8" x 6" 5/8" x 6" 3/4" x 8"
Digging Depth 6" - 8" 6" - 10" 10" - 14" 8" - 12" 14 - 24"
Skid Shoes (abrasion resistant) Standard Adjustment Standard Adjustment Standard Adjustment Standard Adjustment Variable Adjustment
Mounting System D-lock® Quick-Tach D-lock® Quick-Tach / (HQT 5700 only) D-lock® Quick-Tach / HQT D-lock® Quick-Tach / HQT D-lock® Quick-Tach / HQT
Mounting Location Rear Axle Rear Axle / Mid-Mount Rear Axle / Mid-Mount Front-4WD Mount Front-4WD Mount
Mouldboard (ripple formed blade) 10 ga 3/16" 3/16" 1/4" 1/4"

Options and Add ons

Top Extension

Top extension attachments are designed to maximize pushing capacity by preventing spillover.

Silage Extension

Our Degelman Silage Extensions are made from heavy-grade steel and are two feet high so you have maximum volume control. They’re also see-through for increased safety and efficiency.

High Volume Side Plate

Whatever degree your blade is angled at, adding a High Volume Side Plate means you can dramatically improve the amount of volume you can push. It also decreases the amount of snow trailing off your blade so you move more snow with fewer passes.

One-Foot Extension

If you want a bigger blade, or if you add dual wheels to your tractor and want extensions as wide as your wheelbase, our One-Foot Extensions are the answer. Easy to add and as strong as the blade they’re attached to.

Bite Extension

Similar to our One-Foot Extension, our Bite Extension allows you to doze along curbs, foundations or silage container bunks and scrape material off without leaving a trail.

Rubber Cutting Edge

Designed to be used either for slurry barns or for snow removal. The Rubber Cutting Edge essentially squeegees barn floors easily for maximum material pick-up. And for snow removal usage, the rubber edge means you can doze without fear of tripping on manhole covers.

Urethane Cutting Edge

A harder material made for close scraping and removal of compact snow and ice. The Urethane Cutting Edge is a durable polymer that gives you three times the wear resistance of rubber while protecting you from tripping on manhole covers. Available for Strongbox only.

Max Temp® Steel

MaxTemp steel is the same steel that’s used in industrial bulldozer blades. It’s made from hardened high carbon steel that’s strong and durable without being brittle. Made for dozing dirt, levelling roadways, gravel or snow.

Hydraulic Quick-Tach

In the spirit of safety and simplicity, Degelman has pushed the design process one more time by coming up with the all new HQT-Hydraulic Quick Tach System. This precision built feature utilizes a hydraulic pin engagement concept which allows the operator to secure the blade to the Dozer mounting framework from the tractor seat. It avoids the dangers, awkwardness and hassles of crawling around the tractor to secure the dozer engagement. Just one more example of how Degelman pushes design to make things a little safer, more convenient and last longer.

Product Image

Quick-Attach D-Lock® Mounting

The D-Lock® mounting system offers the convenience of quick attach/detach as well as long life. No tools are required. Fit-ups are 100% secure with zero movement. The blade can be removed in minutes by disengaging two points on the front axle brackets.
