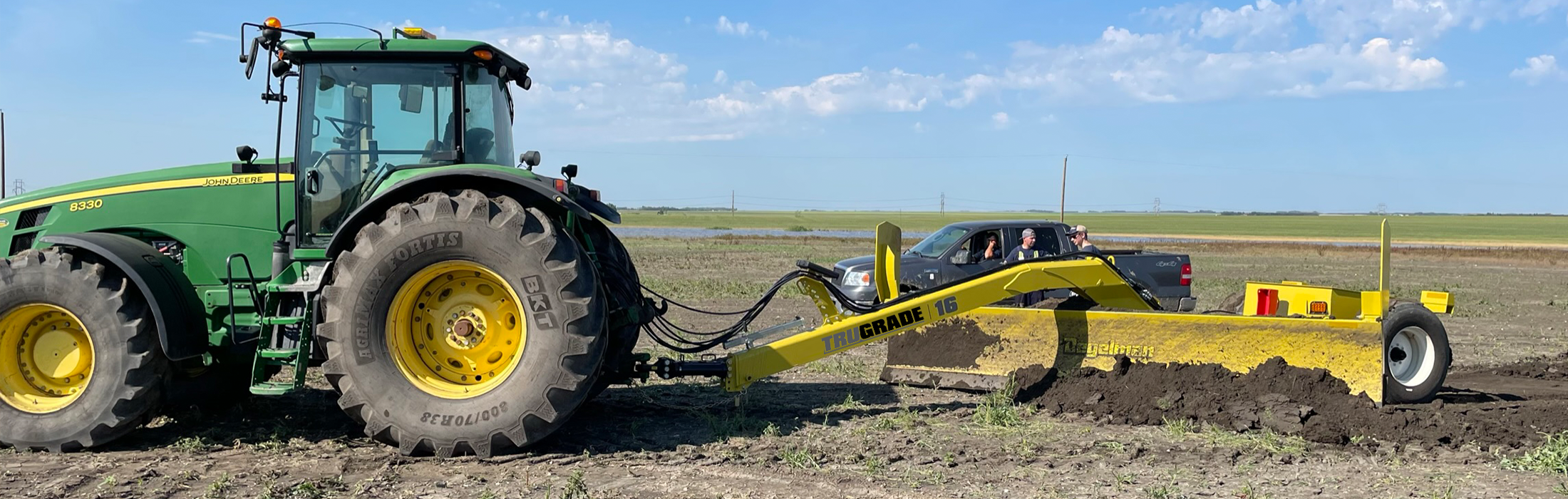

Introducing the Degelman TruGrade, the tallest pull type bulldozer blade on the market. Our Streamlined design will make cleaning ditches, grading roads, digging ditches, leveling fields, and moving snow easier and more efficient than ever.
TruGrade
High Performance Pull Type Bulldozer Blade
NEW FOR 2024- Contact your local Degelman Authorized Dealer for more information
Continuous Angle System
The Trugrade features a Continuous Angle System with a hydraulic angle capacity of 37 degrees to 40 degrees.
This unique feature allows the angle to stay the same no matter the frame offset and ensures the angle of the blade will always be the same in respect to the axle of the machine and tractor.
The continuous angle design ensures the angle of the blade will always be the same in respect to the axle of the machine (and tractor). This is different from a traditional pull dozer design which always maintains the blade angle with respect to the hitch.
In that traditional design, the offset of the hitch will either add angle to or subtract angle from the blade as the blade is offset in either direction. The Degelman TruGrade can maintain its hydraulic angle of 37° -40° no matter the offset.
The Continuous Angle System makes operating the machine at various angles easier and truly sets the TruGrade apart from the competition:
- Ability to keep blade angle constant as the blade is offset either way.
- No need to adjust two hydraulic circuits as blade is offset
- No loss of angle when offsetting hitch in direction that blade is angled
- Allows the machine to be offset further without diminishing effects on blade angle.
No need to adjust tilt every time angle is changed like other machines
- Tilt always stays where set.
- Easier to operate, no need for tilt indicator.
Position 1- TruGrade pulled directly behind tractor with no angle
Position 2- TruGrade offset to one side, angle away from tractor
Position 3- TruGrade off to one side, angle back towards tractor
Position 4- TruGrade angled while pulled directly behind tractor
Position 5- TruGrade offset to one side, blade straight
Blade Height
34"
Weight (w/o concrete)
6510 lbs
Blade Clearance
30"
TruGrade is designed for industry best capacity
The tallest pull type bulldozer blade on the market is designed to move more material per pass
Angle cylinders behind mouldboard avoids the mess of angle cylinders at the top of the blade and forcing angle forces to travel up through the mouldboard
Less Structure required at top of blade and better capacity as formed mouldboard holds more material
Square tube at top of blade disrupts flow of material and decreases effective capacity of the blade
Reversible Cutting Edge
The Degelman TruGrade is one of the few pull type bulldozer blades to offer a reversible cutting edge
- Greatly reduces stress on bottom 1/3 of mouldboard while still providing equivalent wearable material as non-reversible
- Reversible cutting edge provides plenty of wearable material with the ability to flip once one side worn.
- This allows you to quickly and easily flip cutting edge if one side damaged, and no replacement handy
- Double break at bottom of mouldboard perfectly recesses cutting edge for smooth flow of material. Keeps material from piling on top of cutting edge
Additional Features Include:
FLIP OVER END PLATES AND SKID SHOES
NARROW TRANSPORT MODE- Additional set of lugs to the back of the blade give you the ability to switch the machine into narrow transport mode*
*available on 14 and 16ft machines
PREMIUM HYDRAULIC HOSE TOWER & COLOR CODED GRIPS
SPECIFICATIONS
|
Blade Width |
12' |
14' |
16’ |
|
Blade Height |
34" |
||
|
Weight |
6,211 lbs |
6,370 lbs |
6,510 lbs |
|
Concrete Weight |
8,711 lbs |
8,870 lbs |
9,010 lbs |
|
Ballast Amount |
2,500 lbs |
||
|
Blade Clearance |
30” |
||
|
Transport Width (Narrow Transport Mode) |
10' 8" |
8’-6” |
8’-6” |
|
Transport Width (Field Position w Full Angle) |
10'8" |
12'3" |
13'10" |
|
Transport Length |
24’-1” |
||
|
Hydraulic Angle |
37°- 40° |
||
|
Hydraulic Tilt |
15° |
||
|
Reversible Cutting Edge |
5/8” x 6” |
||
|
True Greaseless Technology |
Standard on lift and angle cylinders |
||
|
Flip Over End Plates |
Standard |
||
|
Tires |
Trakmila TFT Tubeless radial 385/65R22.5 |
||
|
Hubs |
CTD HA817 2-1/2” diameter spindle, rated at 7500 lbs each. 8 bolt on 8” BCD, 5/8” UNF studs |
||
|
Basket Dimension |
47-3/4” wide x 34-5/8” front to back x 19-3/16” deep |
||
|
Remotes |
4 (Lift, Angle , Tilt, Offset) |
||
