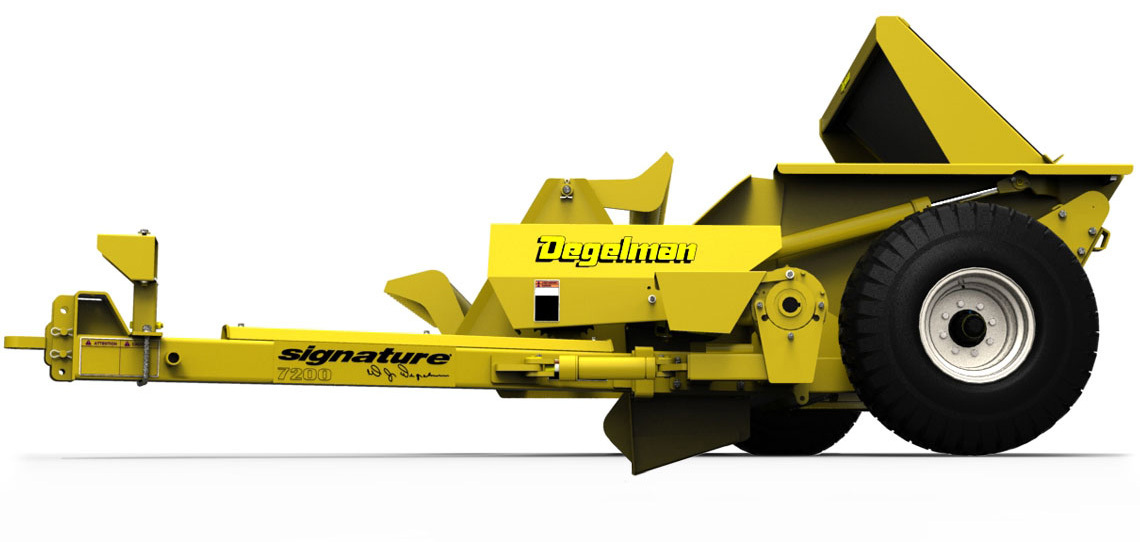

The Degelman Signature series rock pickers are the result of over 55 years of pursuing excellence Degelman rock pickers are unrivalled for performance and durability and are THE industry standard. Our attention to details means these machines will work flawlessly for years to come, as you will commonly find Degelman rock pickers made 55 years ago still working today.

Product Image

Long Swing Pole

The Degelman Signature series rock pickers are the result of over 55 years of pursuing excellence Degelman rock pickers are unrivalled for performance and durability and are THE industry standard. Our attention to details means these machines will work flawlessly for years to come, as you will commonly find Degelman rock pickers made 55 years ago still working today.

Stone Digging Capacity

With the unit in transport position, the picker's solid grill tines can be lowered into the soil to lift partially submerged rocks. While not specifically built for this purpose, the 7200 functions well in the removal of moderately sized stones. For large stone problems, the Degelman Rock Digger is the tool of choice for ridding your field of these oversized rocks.




Large Stone Capacity

With a massive 28 inches of clearance between the paddle assembly and the grill, large stones are easily picked. These machines are designed to provide relentless heavy stone work day in and day out.

Superior Rock and Soil Separation

Degelman rock pickers are designed to pick stones quickly, efficiently, and keep soil collection to a minimum. The geometry between the reel and grill is designed so that the paddle makes the first contact, lifts and spins the stone onto the grill, further separating the rock from the soil.

The unique interlaced grill and paddle teeth drop the dirt back onto the field. Even the hopper box makes use of grated spring bar strapping to keep rocks in and dirt out.


Windrow Capacity

Operators that clear bush and pasture land often use Degelman rock rakes to place debris into neat windrows. Our Degelman rock pickers were designed to take the normally tough demands of a rock windrows. These windrows are often contaminated with sticks, stumps, crop residue and stones of various sizes and shapes. Degelman Signature series pickers are designed to work tirelessly for this exact purpose.

Round Solid Steel Grill

The grill teeth on the Signature Rock Pickers are made of round solid C1045 steel shafts. This steel is much stronger than ordinary mild steel and has a natural spring to it to resist impact damage. A Degelman grill is extra heavy, developed with the optimum sweeps and curves to separate rocks from stones. Every third tooth is welded to the frame to allow small lodged rocks to clear freely. The round profile itself is also the optimum shape with the smallest choke point to minimize jams.

Product Image

Excavator Tips

From loose dirt and crushed rock, to concrete and abrasive mining applications - the Degelman excavator tips are world renowned for high quality steel backhoe teeth. These cast steel grill tips provide the ultimate protection against high impact and high abrasion. The solid grill shafts are precisely milled to accept these teeth, and the tips are easily replaced by removing a simmple roll pin.

Product Image

Precision Grill Control

The wheel placement created between the tractor hitch and the offset tires provides precise reactive control over grill depth, exceptionally important when working in soft and or wet field conditions.

Frame Design

Rock pickers are used in the most abusive and harsh conditions known in the agricultural and construction markets. Hitting, lifting and picking hard heavy stones put enormous stress on equipment. A durable rectangular frame design is the heart of a Degelman rock picker. It supports these big loads and carries the weight of the grill and reel assembly. Even the inside corners are supported by heavy angle plates that tie the frame tubes together.

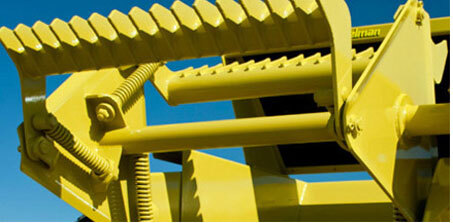

Superior Paddle Teeth

The paddle design starts with an over-sized, heavy wall tube. The teeth themselves overlap the paddle tubes to protect the tubes from damage. This small detail increases the tube strength, creates a more robust point of rock contact, prevents tube damage through bowing, and reduces dents. This is just another example of the Degelman difference - no detail is overlooked.

Degelman Industries makes use of cutting edge production technology like robotically welded paddle teeth - perfect welds every time. Additionally, the teeth are fully hard surfaced by a robot - a technique commonly employed in industrial applications that provides three times more wear resistance.

Product Image

Heavy Reel

The oversized reel plates are heavy and designed to withstand abuse. The reel side plates are laminated and incorporate formed edges that dramatically increase the reel's strength and providing a natural deflective surface. Through years of exhaustive research, development and testing, we have found that the soft steel of our cotter pins outlast all other forms of fasteners. Small details can make a big difference.



Advanced Reel Spring Design

The reel spring assembly moves constantly under heavy loads and is designed to arc back under pressure and release. The spring is a heavy-duty compression design exclusive to Degelman, that has taken years to perfect. It works better and lasts longer than typical extension springs. Paired with this is a urethane puck that dampens vibration and minimizes backlash as the reel paddle decompresses. Finally, a simple bend integrated into the spring holder plate greatly increases the strength of the spring holder.


Extra Hose Protection

Hydraulic hose is normally vulnerable to rock damage and flying debris. We have protected all key areas with a combination of removable steel hose guards with flared edges, and industrial quality hose clamps. This reduces both cuts and vibration.

Product Image

Hydraulic Cylinders

Another example of design elegance and simplicity is the utilization of a single set of cylinders which means there is less potential problems to occur. As an operator, you control both the grill height and the dumping of a load of rocks with a single set of hydraulics.

Removable Tire Assemblies

Distributing weight and minimizing the pounds per square foot in soft wet conditions is necessary. These large diameter 16.5L tires disperse the weight of rocks in the hopper and reduce the possibility of heavy rutting on your valuable fields.

We make changing the tire, rim or spindle a much simpler process by providing a single bolt through the spindle. Changing the running gear is quick and painless.

Extra Plates, Extra Welds, Extra Strong

Backing into a rock pile with a weighted rock picker can damage key components. The hydraulic hose cover is welded to the box frame to be even stronger in a key crush point. The back of the hopper box is constructed of double walled formed steel as it receives heavy pounding by rocks in the hopper and the area most likely to become damaged.

In locations where crush damage and daily wear are more likely, we have reinforced these areas to ensure you have years of trouble free operation. For example, the grill side plates have additional reinforcement plates added to counter head-on damage.


Safety and Transportation

The transport lock is accessed safely on the outside of the grill assembly. In the locked position it is impossible for the grill to fall and become damaged in a transport situation.

To make your life a little bit easier, we have added a tow hook on the back of the picker to help you bring additional equipment to the field. Safety information and a highly visual manual is provided with every piece of equipment we manufacture.

Product Image

SPECIFICATIONS

Model

Signature 6000

Signature 7200

Working Width

11'-6"

13'-11"

Grill Width

5'

6'

Transport Width

9’-7”

10’-10”

Horsepower

70-150 hp

70-180 hp

Hopper Capacity

2 yd3

3 yd3

Weight

4,700 lbs

6,350 lbs

Hitch Weight

750 lbs

850 lbs

Reel Spring

Tension

Compression

 ALL MODELS

Length

14’-16’

Height - Empty

6'-4"

Height - Unloading

3'

Frame

6” x 6” x 1/4”

Drive

Hydraulic

Chain

#100 hd

Paddles

3 Paddles

Paddle Teeth Surface

Hard Surface

Grill Tines

1-3/4” - C1045 (c/w Replaceable Tips)

Hitch

Bolt-On

Hitch Pole

Hydraulic

Hydraulic Cylinders

3” x 31” x 1-1/2” Rod

Hydraulic Pressure (min)

2,500 psi

Hydraulic Flow (min)

15 gpm

Hydraulic Motor Displacement

280 cm3 (17.1 in3)

Hydraulic Outlets Needed

3

Tires

16.5 L x 16.1

Picks Rocks

2" - 24"
